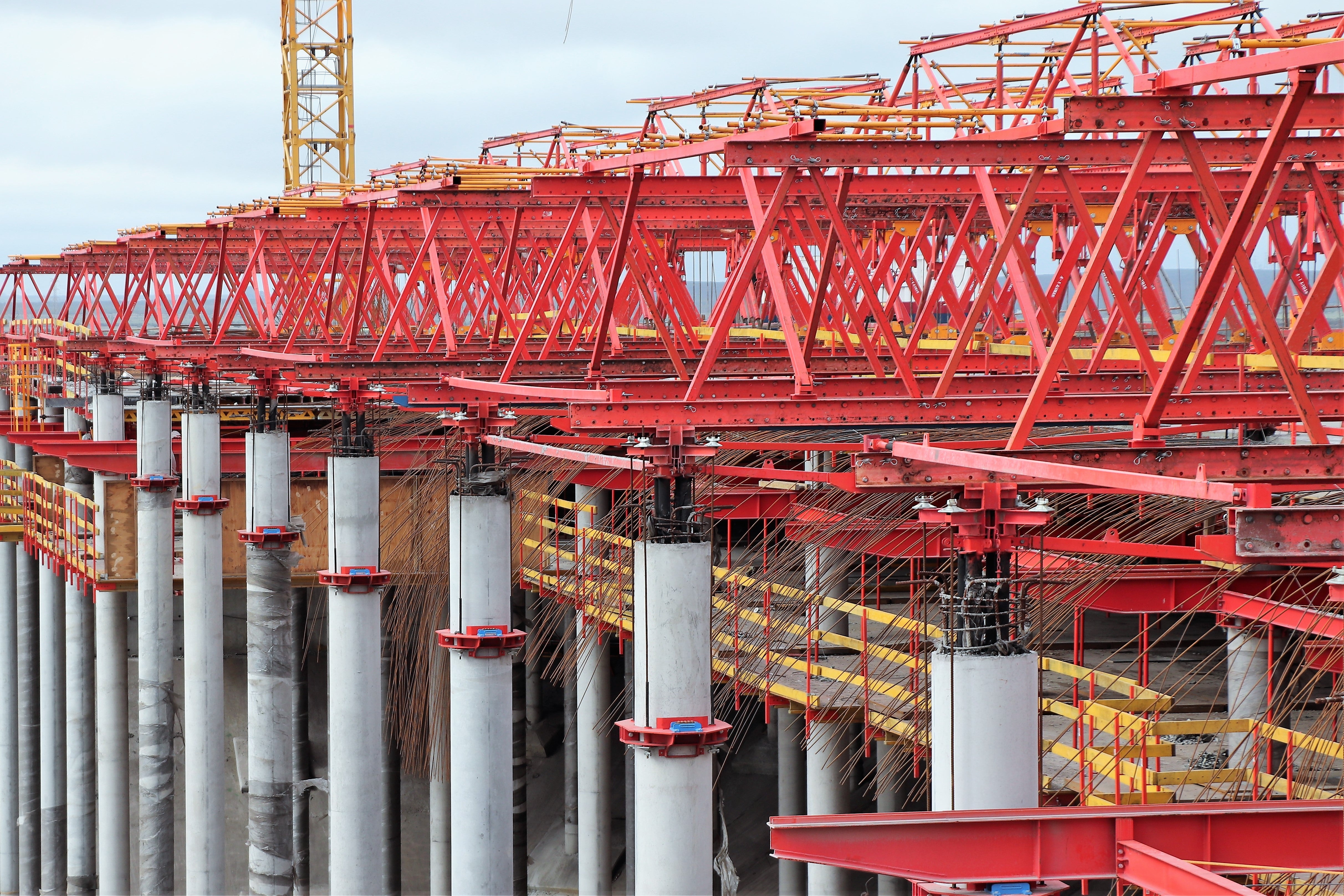

A unique suspended slab-support system was designed for this project.  A travelling gantry was designed to meet the unique time and labour requirements for this project.

OTMS Tank Farm, Saldanha (South Africa)
Saldanha, South Africa, South Africa

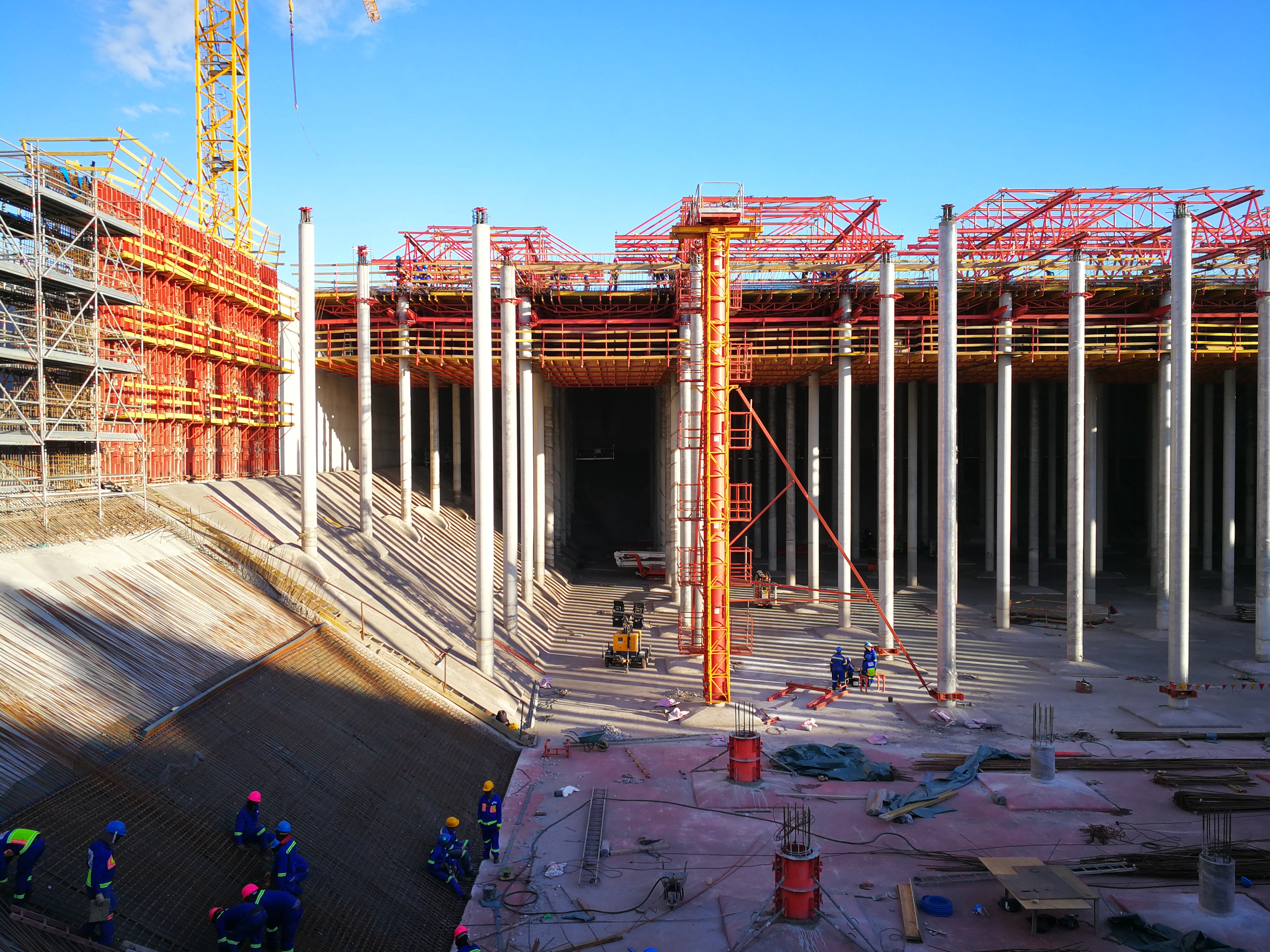

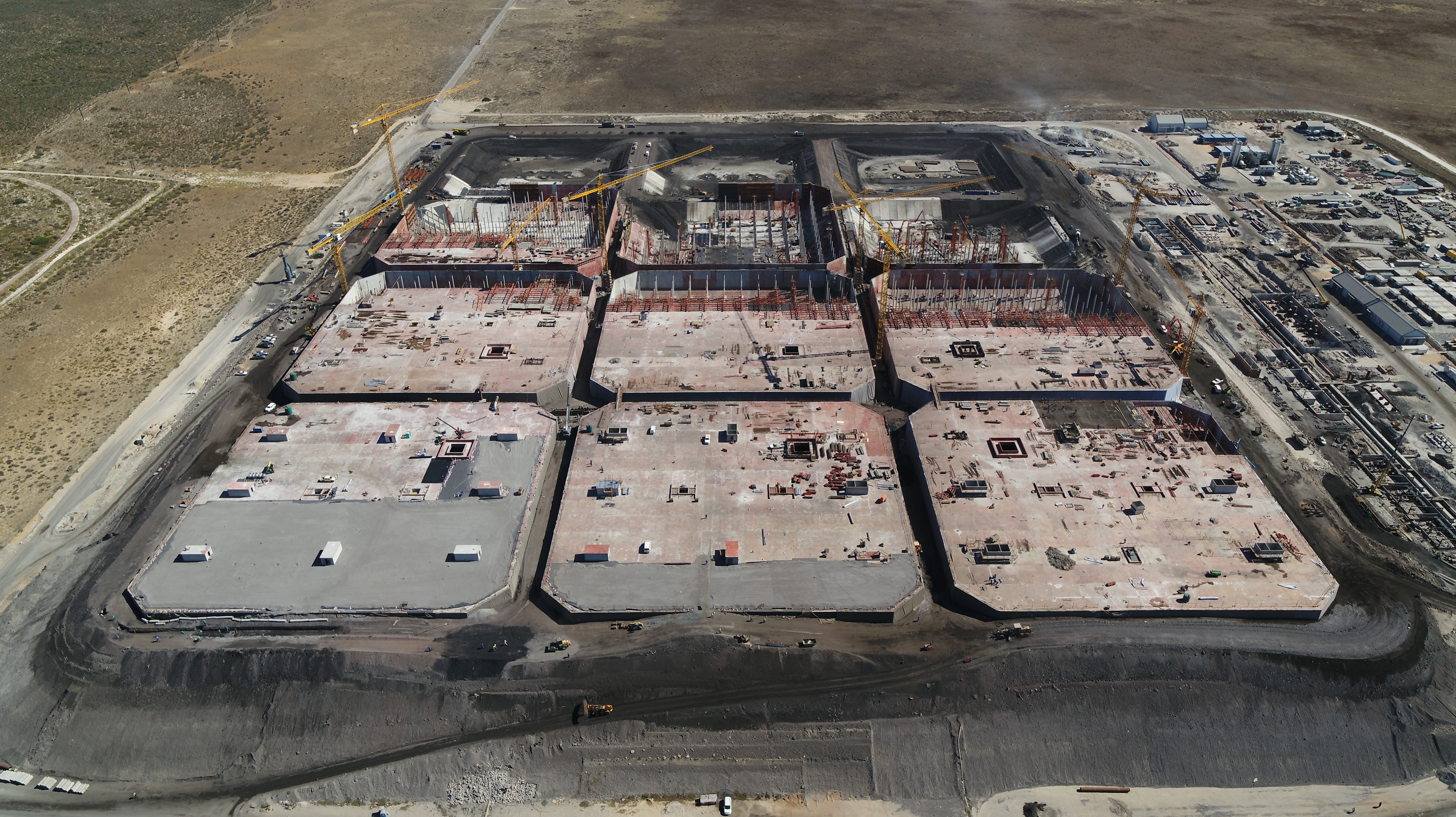

12 concrete underground tanks are currently being built, each of which is 110 by 110 meters, as large as two football fields. A total of 13.2 million barrels of oil can be stored here after completion. 150,000 cubic meters of concrete total - equivalent to the contents of more than 60 Olympic swimming pools. PERI was extensively involved from early design stages up to completion. The OTMS tank structures called for a unique design to construct the columns, walls and slabs. Sloping slabs on top of 17 columns, as well as the sloping floors presented design challenges for the design of a suspended support system for the slabs

Location

Saldanha, South Africa

Main Application

Industrial Structures

Project participants

Customer: WBHO Construction (Pty) LTD, Johannesburg, South Africa

The Project

Impressions from the project process

1 /

10

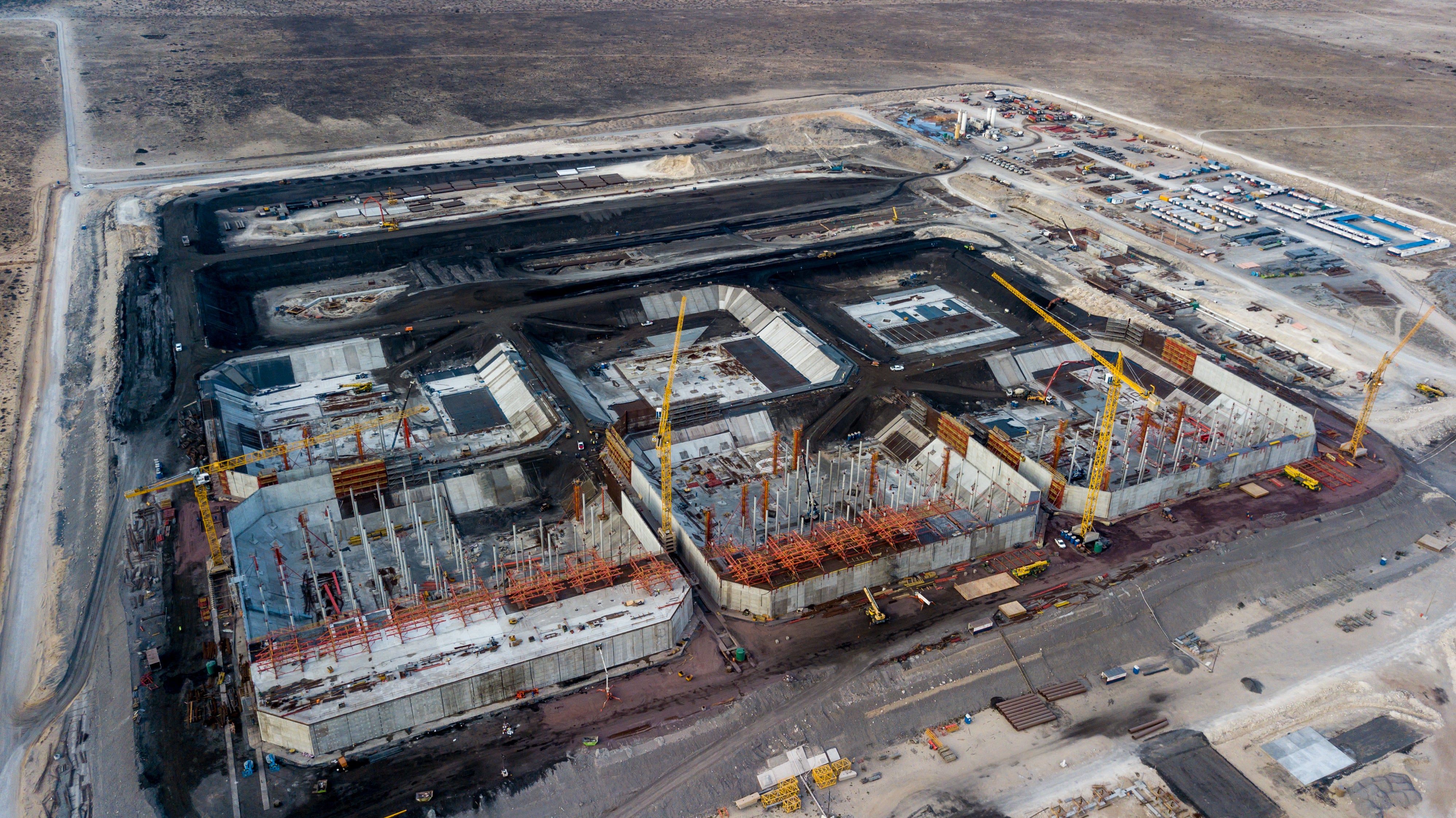

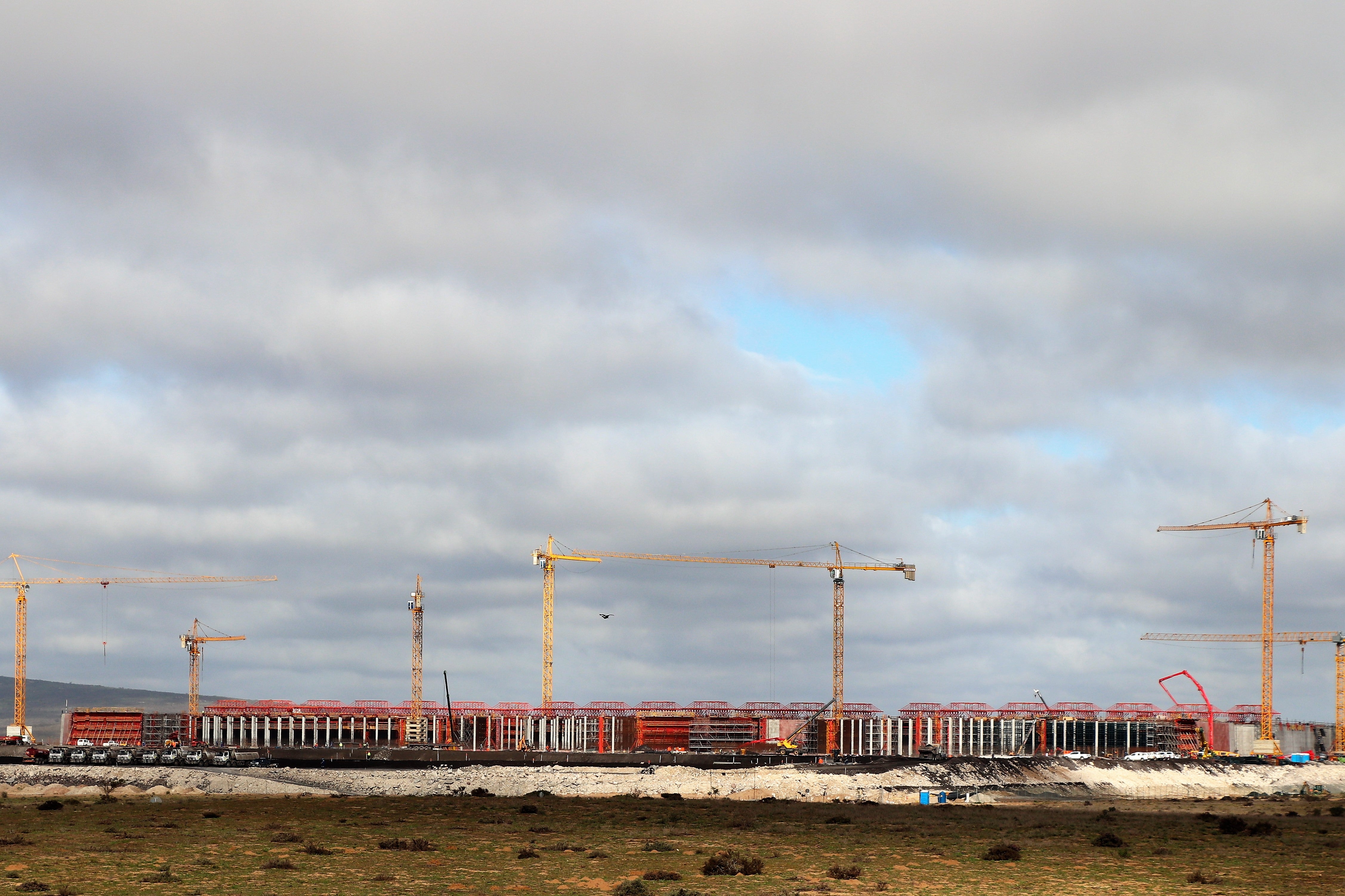

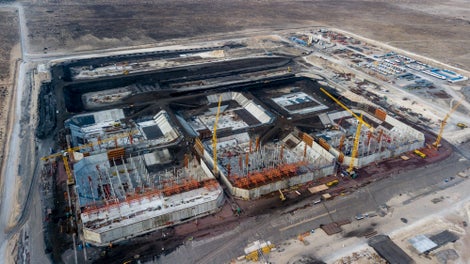

OTMS Tank Farm, Saldanha, South Africa

OTMS Tank Farm with PERI, Saldanha, South Africa

The size of 24 football pitches, 17 m high and able to hold 13,2 million barrels of oil in total. PERI planned, optimized and supplied an unconventional solution to construct 12 huge, underground concrete tanks within the specified time frame.

Project Information

Requirements

Main challenge: extremely short cycle time for the 17m high slab formwork of 6 days for a 110 x 110 x 8m section, wall formwork with steel face, 17m high columns in one pour.

Solutions

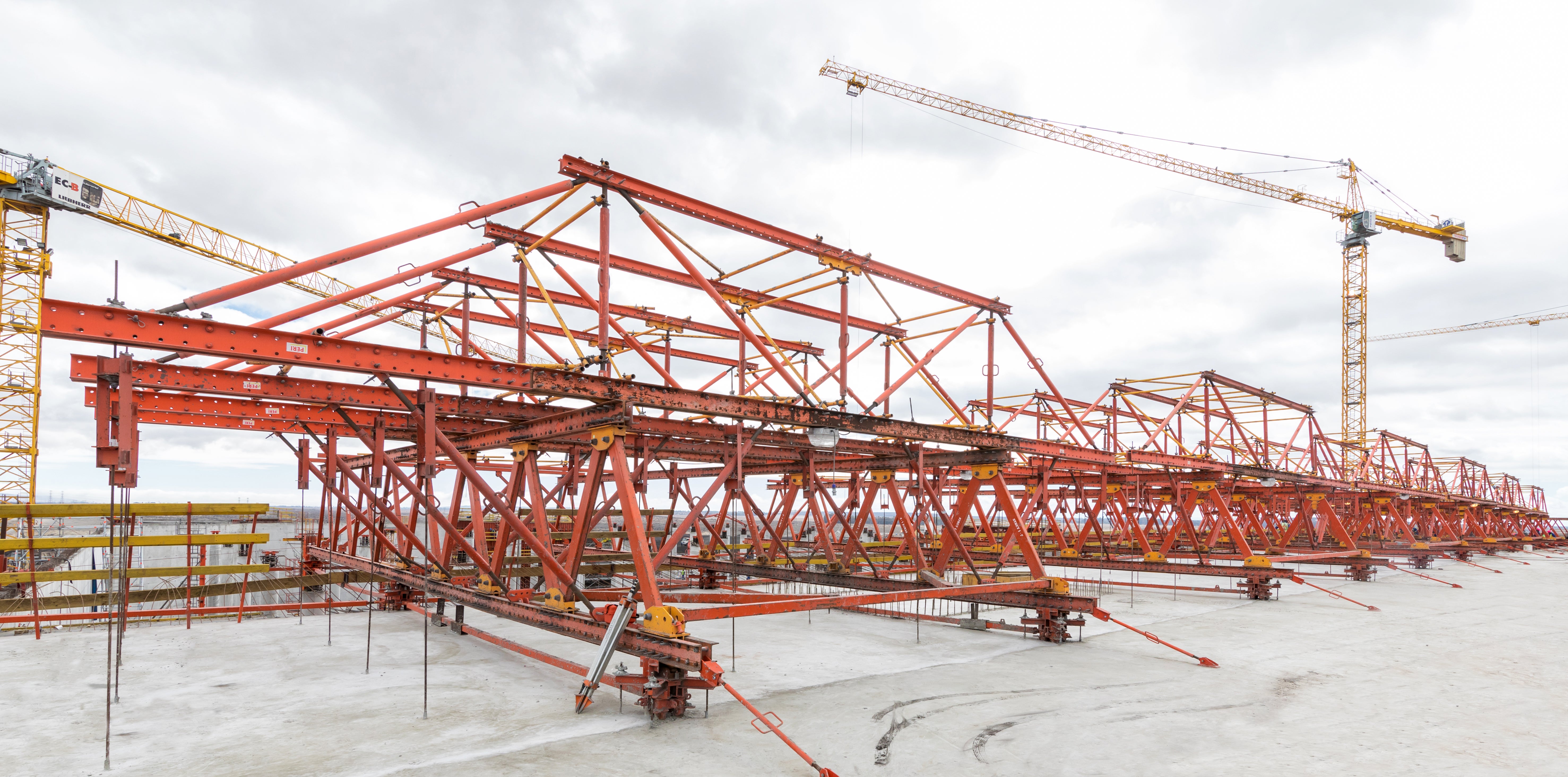

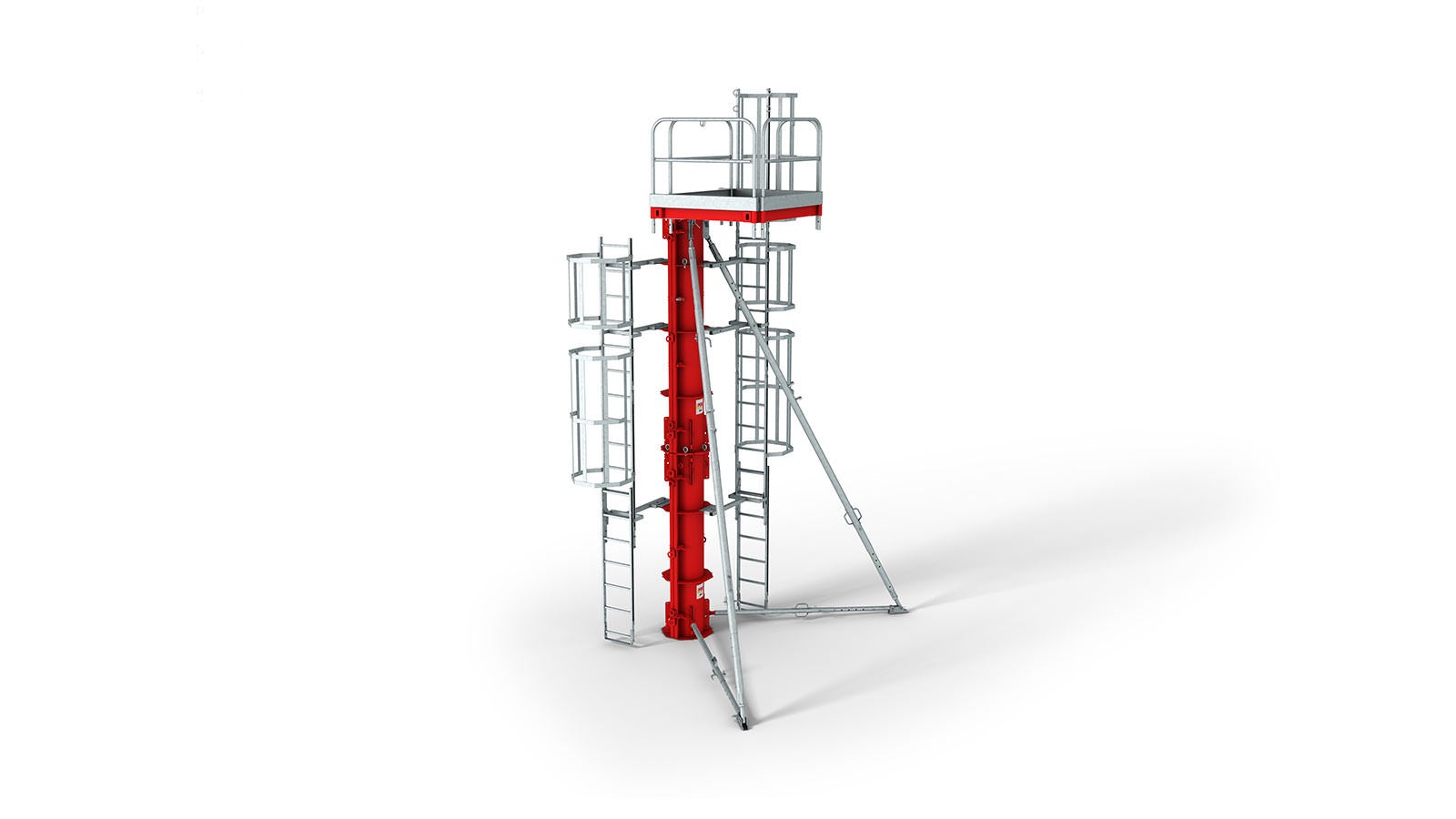

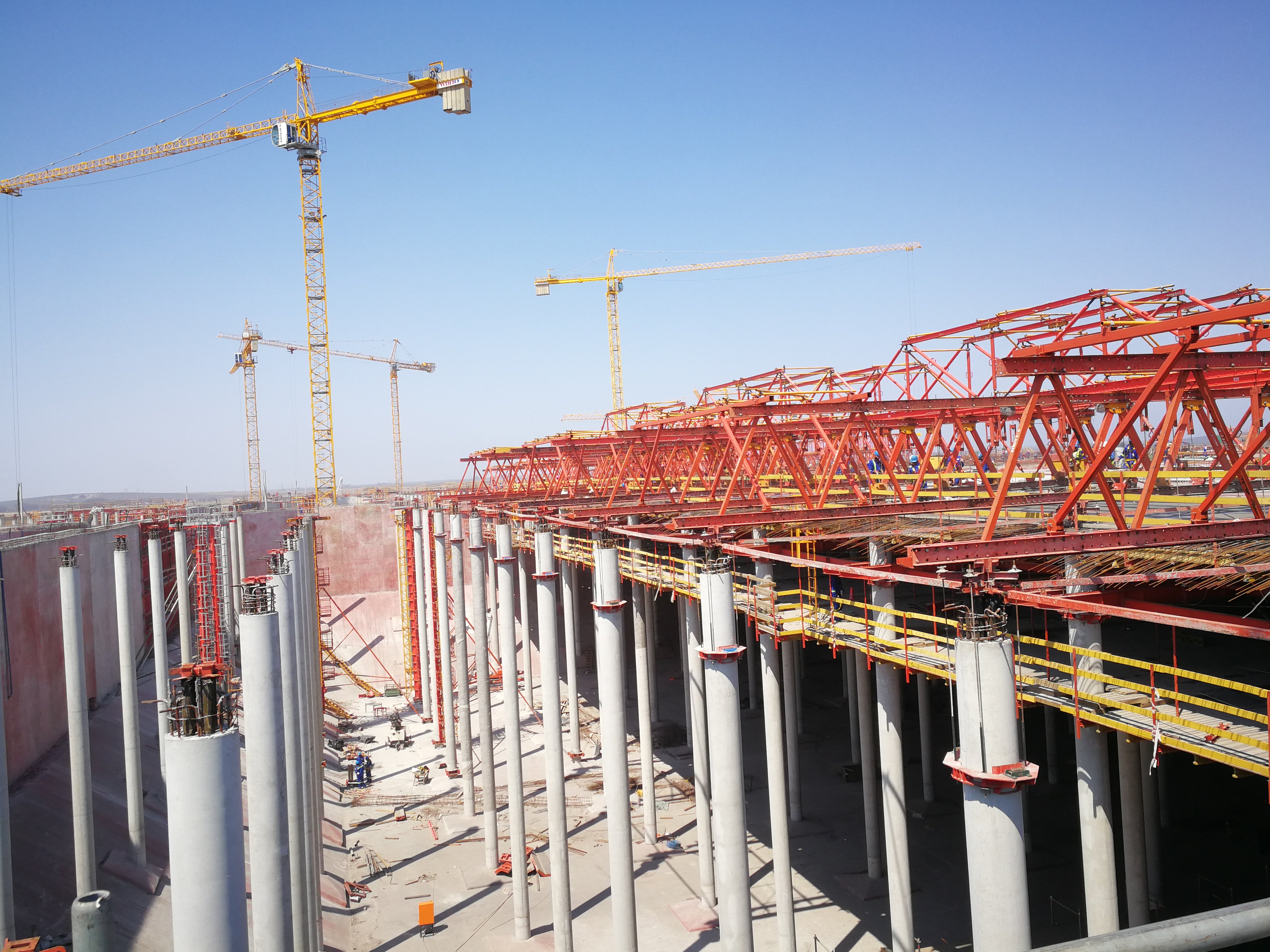

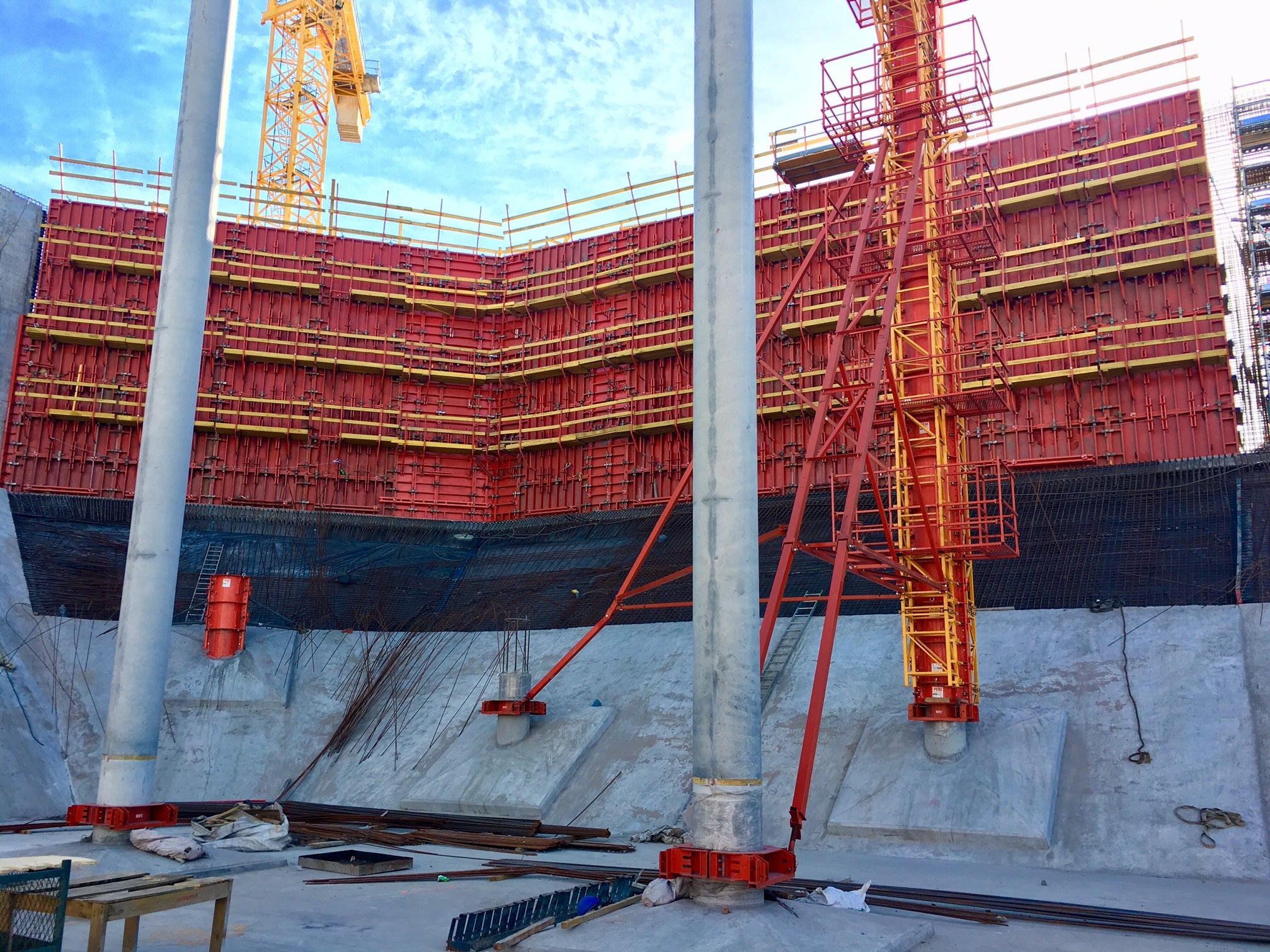

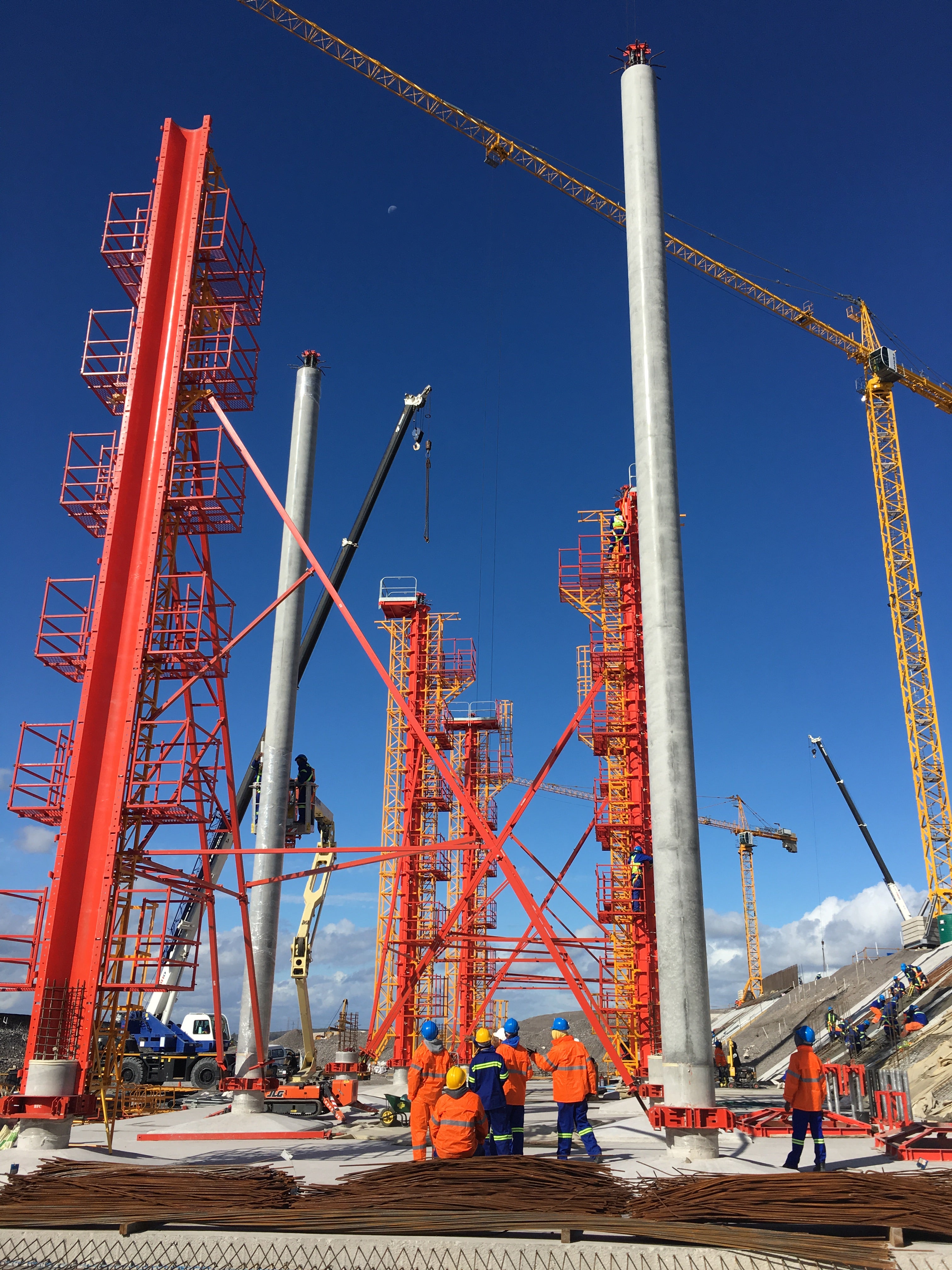

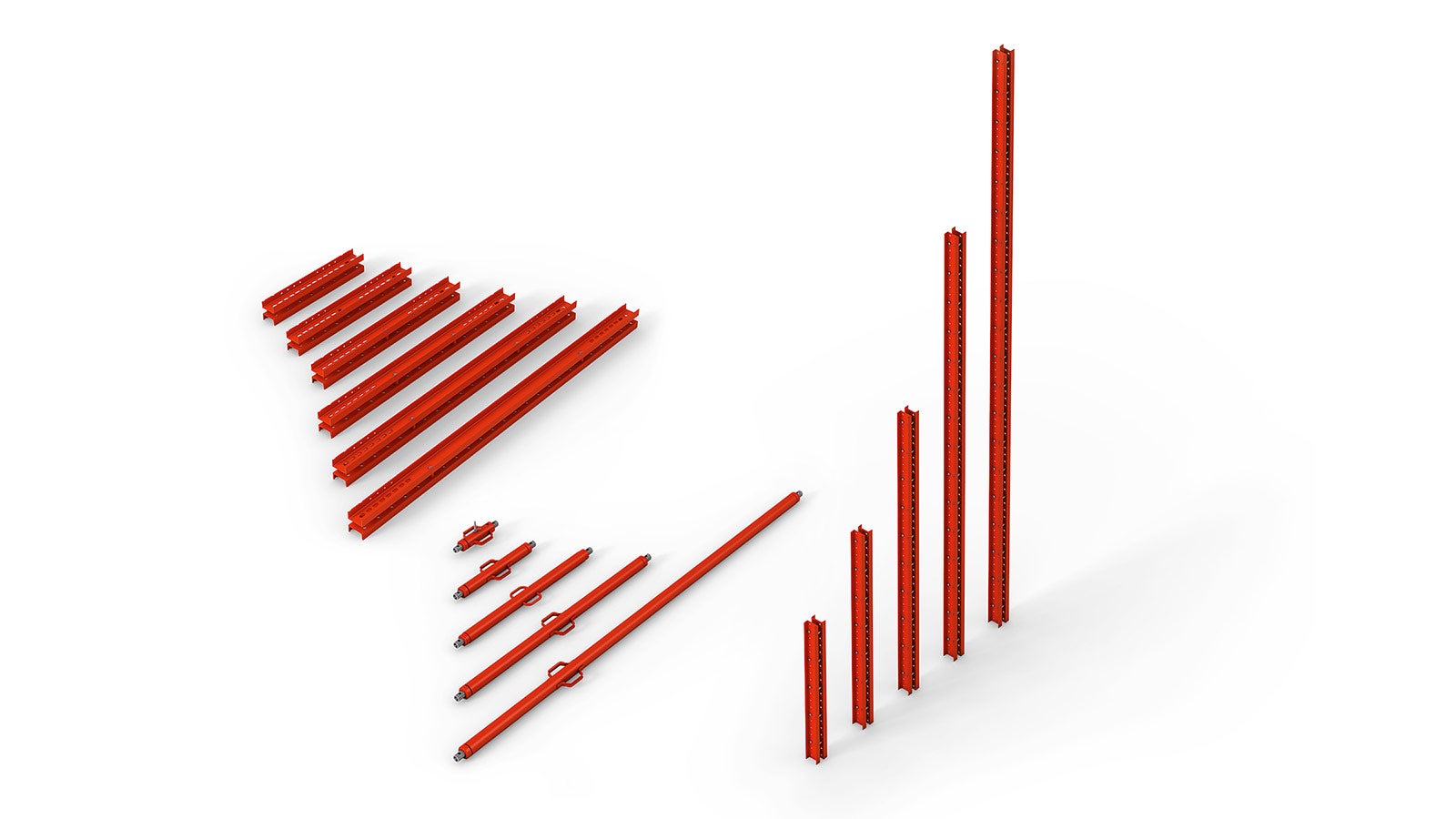

Walls & Columns: PERI TRIO special with steel face plate PERI SRS column formwork with special support system Full engineering support including BIM on site pre-concreting checklists, method statements and cycle programs Full site support during the entire phase of pre-assembly and initial installation Slabs: VARIOKIT gantries, tableforms and suspended working platforms all on rollers, no cranes required for stripping, moving and repositioning PERI VARIOKIT gantries in special application, suspended GT/VT tableforms on rollers, suspended working platforms

Customer benefits

 - Time/Cost advantage  -  Easy construction sequence and handling

"We knew that only PERI can give us the solution and confidence to build these challenging structures in a short time!" (PERI Customer Proximity video)

Berto Smit

MD of WBHO Civils
