The fast, rentable solution with the best handling and reduced material quantities

VARIOKIT VIL Incremental Launching Facility

The fast, rentable solution with the best handling and reduced material quantities

External, internal and slab form-work for bridges can be systematically and cost-effectively realised with the VARIOKIT VIL Incremental Launching System. Based on the VARIOKIT Engineering Construction Kit, rentable project solutions can be created in order to accelerate and rationalise work operations.

VARIOKIT VIL Incremental Launching Facility in action

  • The clamping holes of the wall formwork can be used for anchoring the Wall Supports. The well-thought-out anchoring procedure reduces costs.
    Reduction in the number of lost components

    through a well-thought-out anchoring procedure.

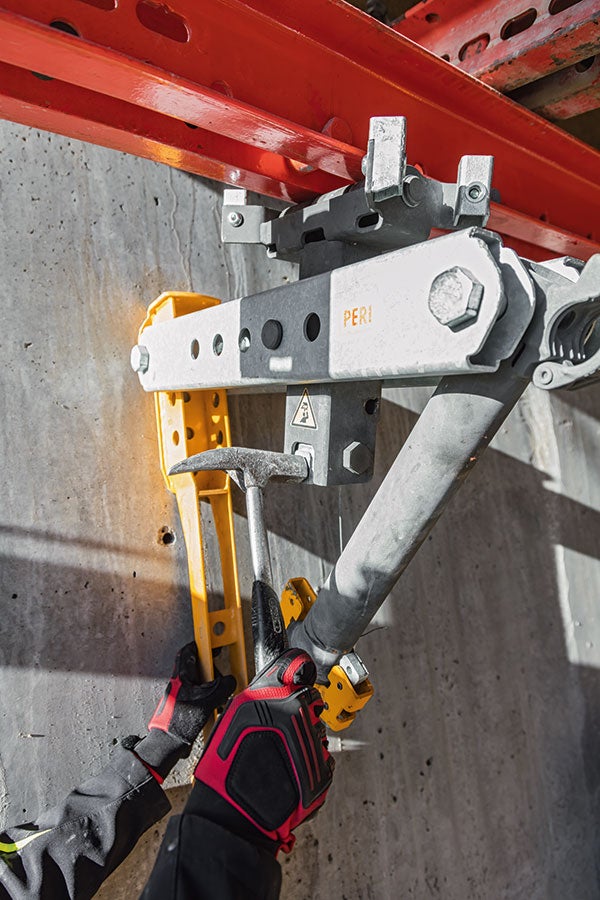

  • Due to the quick striking mechanism of the Roller Drophead, also in confined spaces – one hammer blow is sufficient.
    Accelerated working operations

    Fast striking and a clever shuttering method.

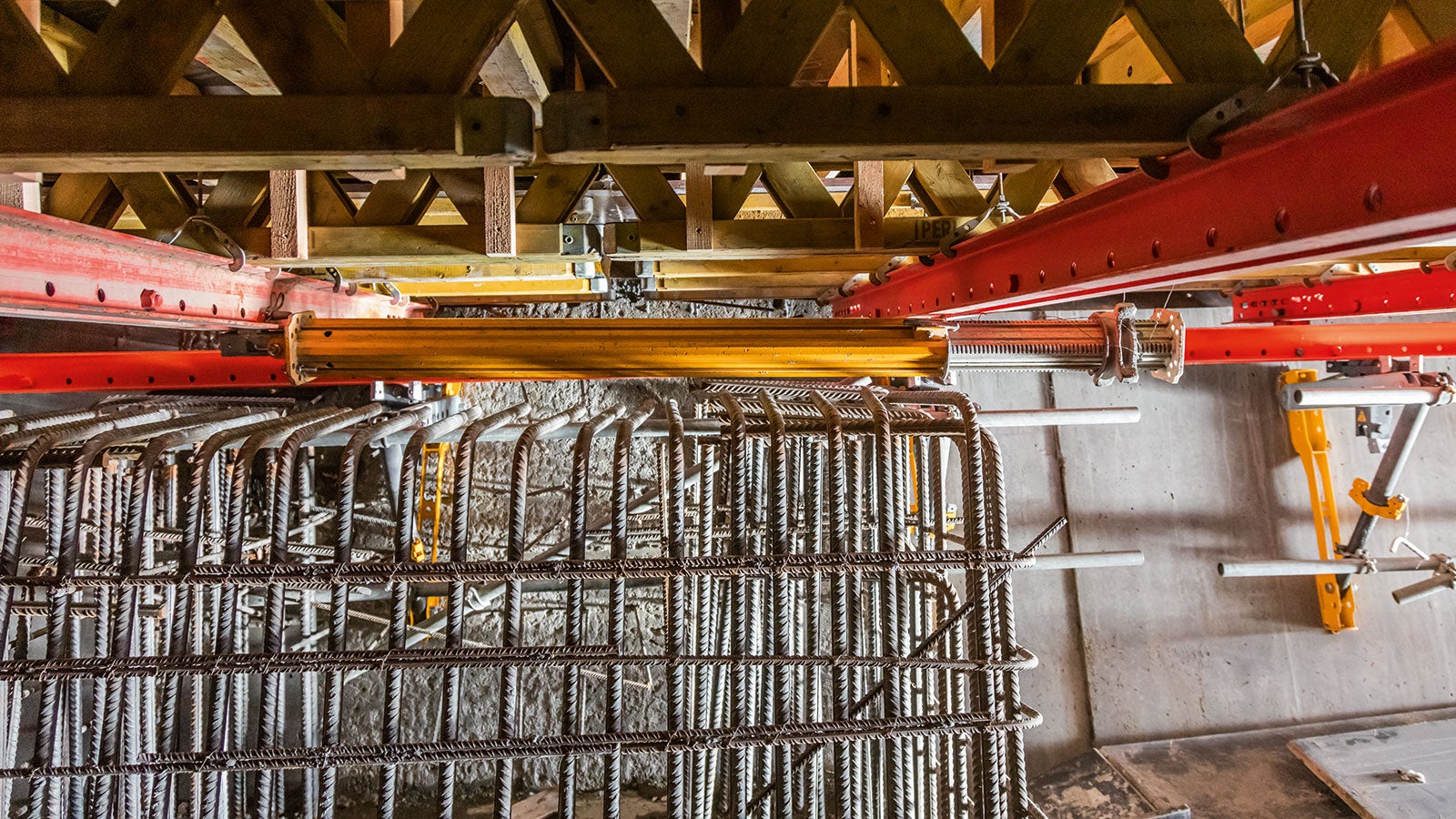

  • Horizontal folding of the props by 90° due to the new Cross Swivel Head. Props do not have any load-bearing role when passing over span boxes and cross beams, and therefore do not have to be dismantled and transported by hand.
    Easy handling

    with reduced manual material transport in the construction process.

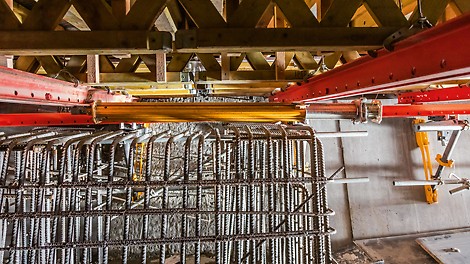

    Horizontal folding of the props by 90° due to the new Cross Swivel Head. Props do not have any load-bearing role when passing over span boxes and cross beams, and therefore do not have to be dismantled and transported by hand.

Technical Specifications

  • Thanks to innovative system components, savings are made not only regarding materials but also valuable working time.
  • The possibility of fast striking, reduced material trans-port in the construction process, the simple moving procedure of the slab formwork, as well as the fact that no scaffolding tube bracing is needed, the quantity of formwork materials re-quired on the construction site is significantly reduced.
  • Work processes are simultaneously greatly accelerated.
  • By reducing the number of special components, a rentable system solution of almost 100% has been created.
  • The components are quickly available which means no pre-investment is necessary – also for radii and lateral inclinations with a high proportion of rental parts.
  • The accelerated and simplified workflows make VIL a profitable solution for a particularly high level of performance and effectiveness in bridge construction.
