SKYDECK in action
-
Watch the video to find out more
-

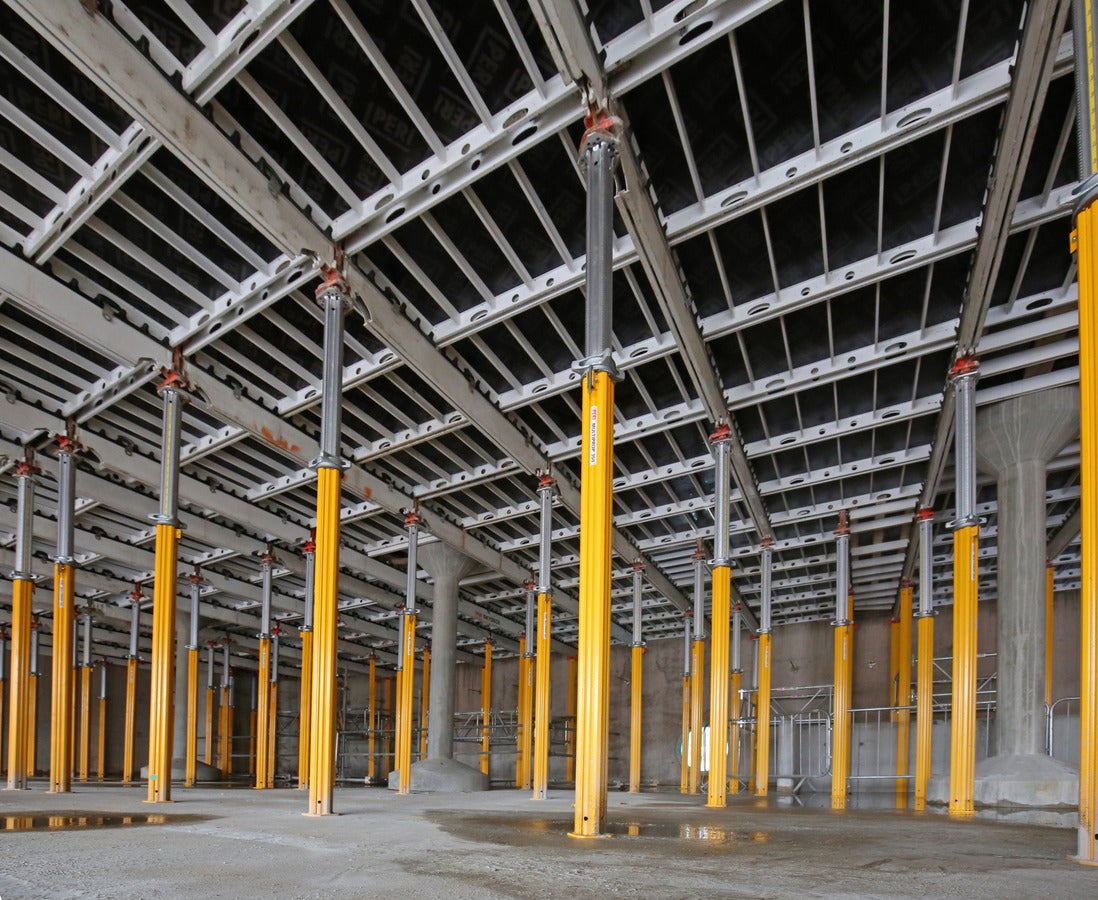

Effortless working
with very lightweight and easy-to-handle components.
-

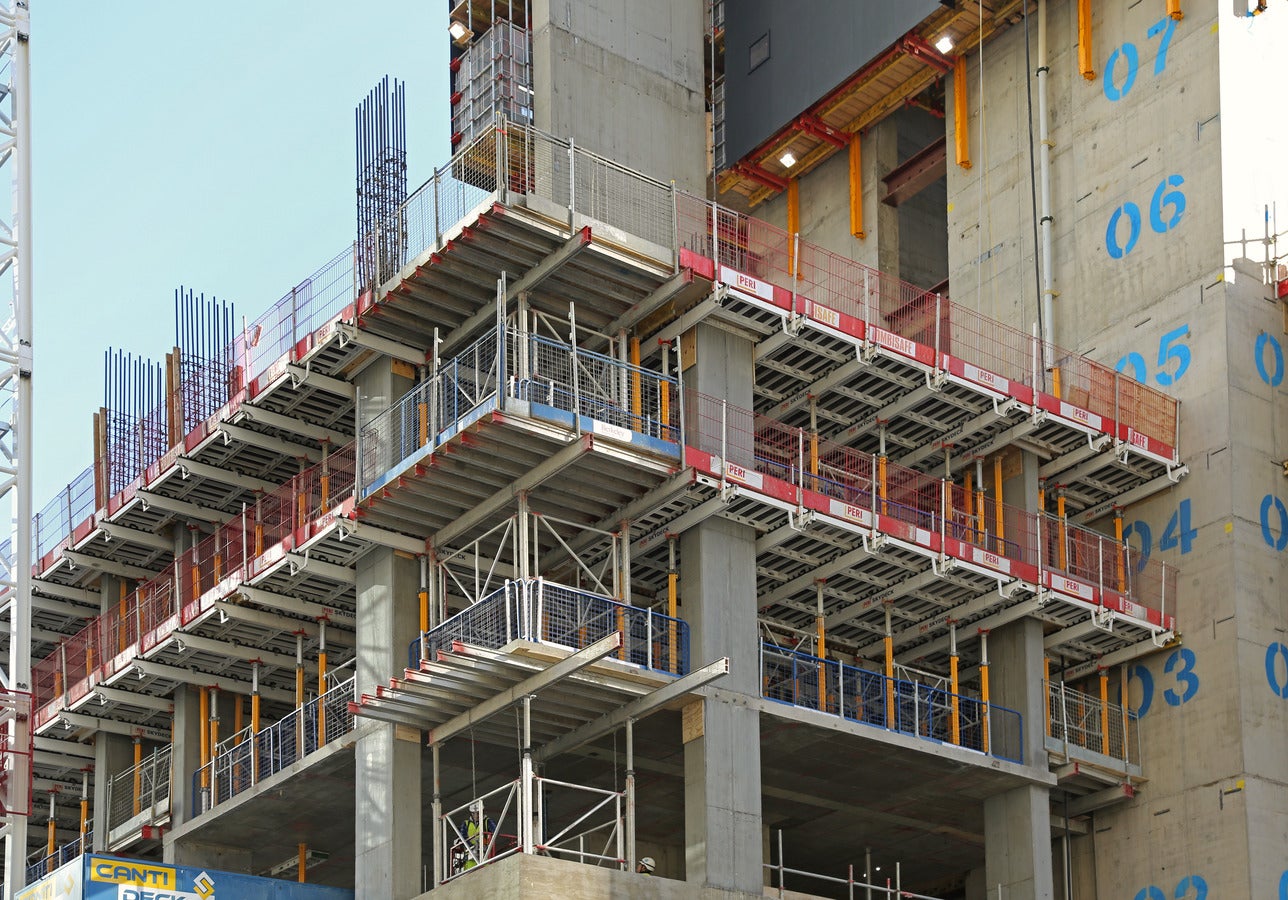

Fast forming
due to the simple and systematic assembly sequence and only a minimum of slab props.
-

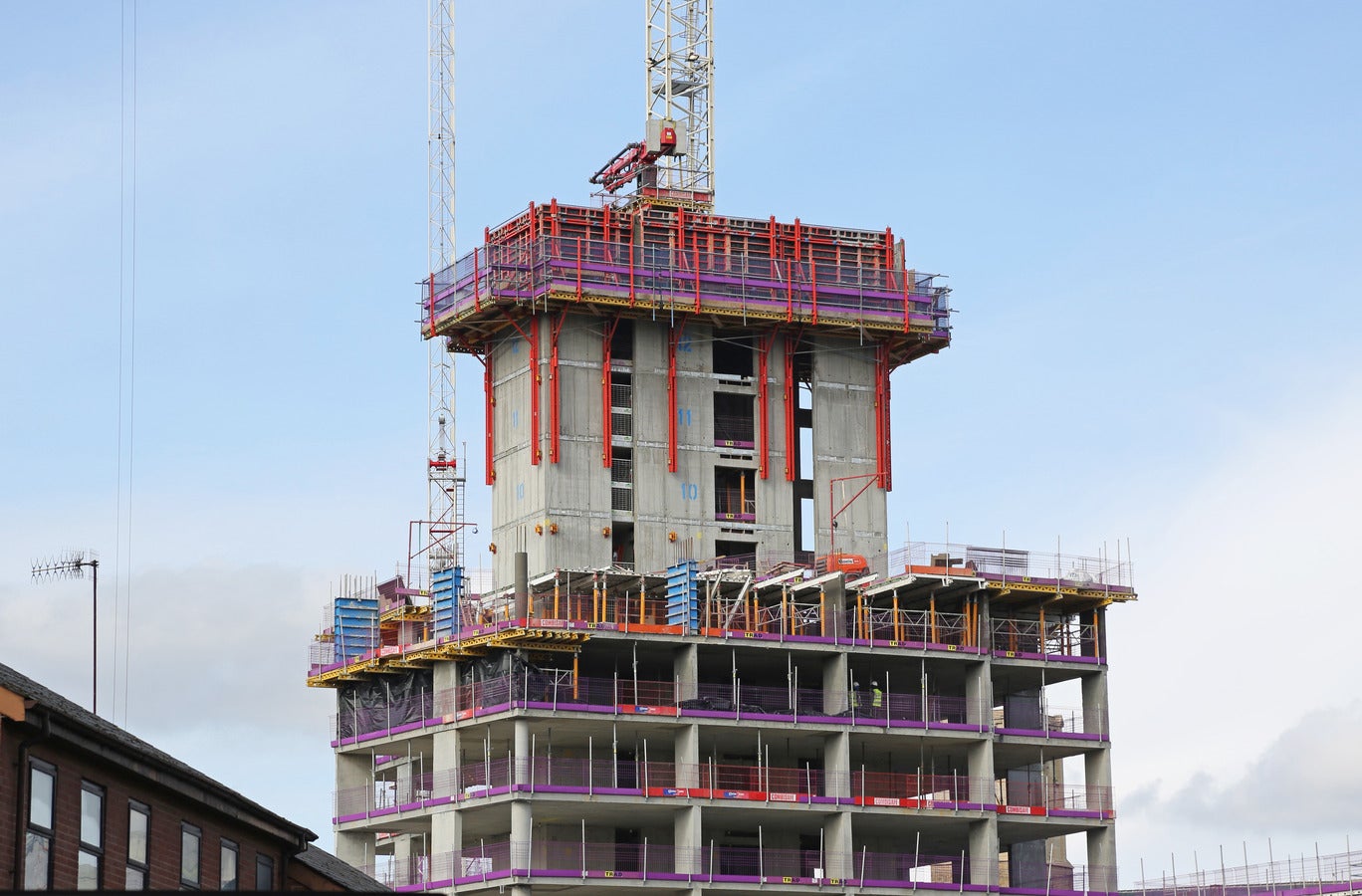

Low on-site material requirements
due to early striking with the drophead and fast deployment of the panels and beams in the next storey.
-

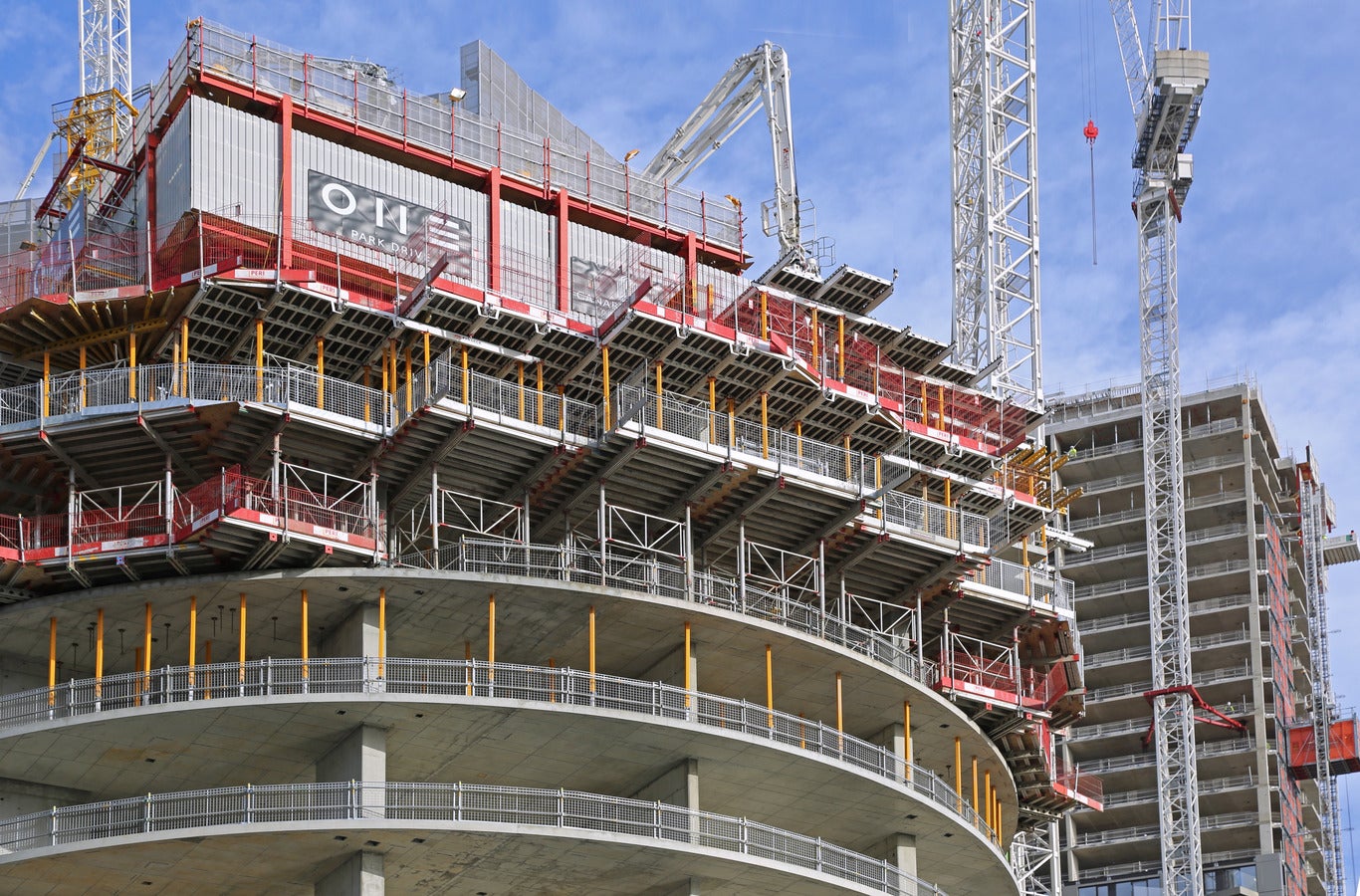

Easy cleaning
through powder-coated elements, components made of plastic, and undercut panel edges.

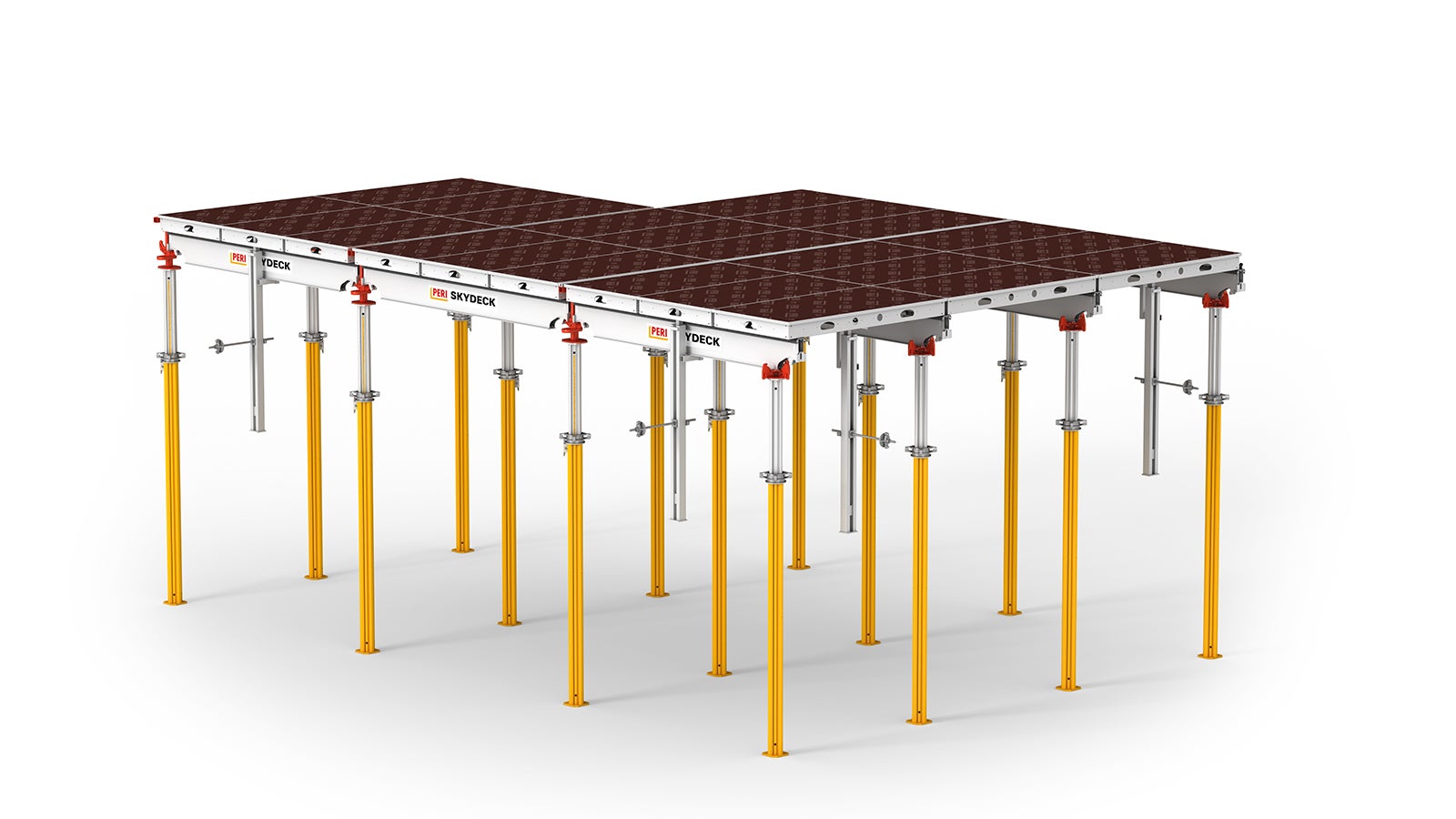

Product Data Sheet
System type
Panel Slab Formwork
Dimensions
Panel sizes: 150 x 75 cm | 150x50cm | 150x37.5cm | 75x75cm | 75x50cm | 75x37.5cm,,
Girder lengths: 375 cm | 225 cm | 150 cm
Area/Support
3.45 m²
Material
Aluminum
Formlining
9 mm FinPly
Installation time
Early stripping is possible after just one day thanks to a drop head. The formwork is lowered by 60 mm with a hammer blow.
Anti-corrosion and surface coating
Powder coating
Fulfilled standard
DIN 18202, line 7 with a ceiling thickness of 95 cm
Slab thickness
Up to 109 cm in any height
Load
Permissible platform load: 150kg/m²
Other
Quick and easy choice of support using table book, systematic assembly sequence and assembly safety
