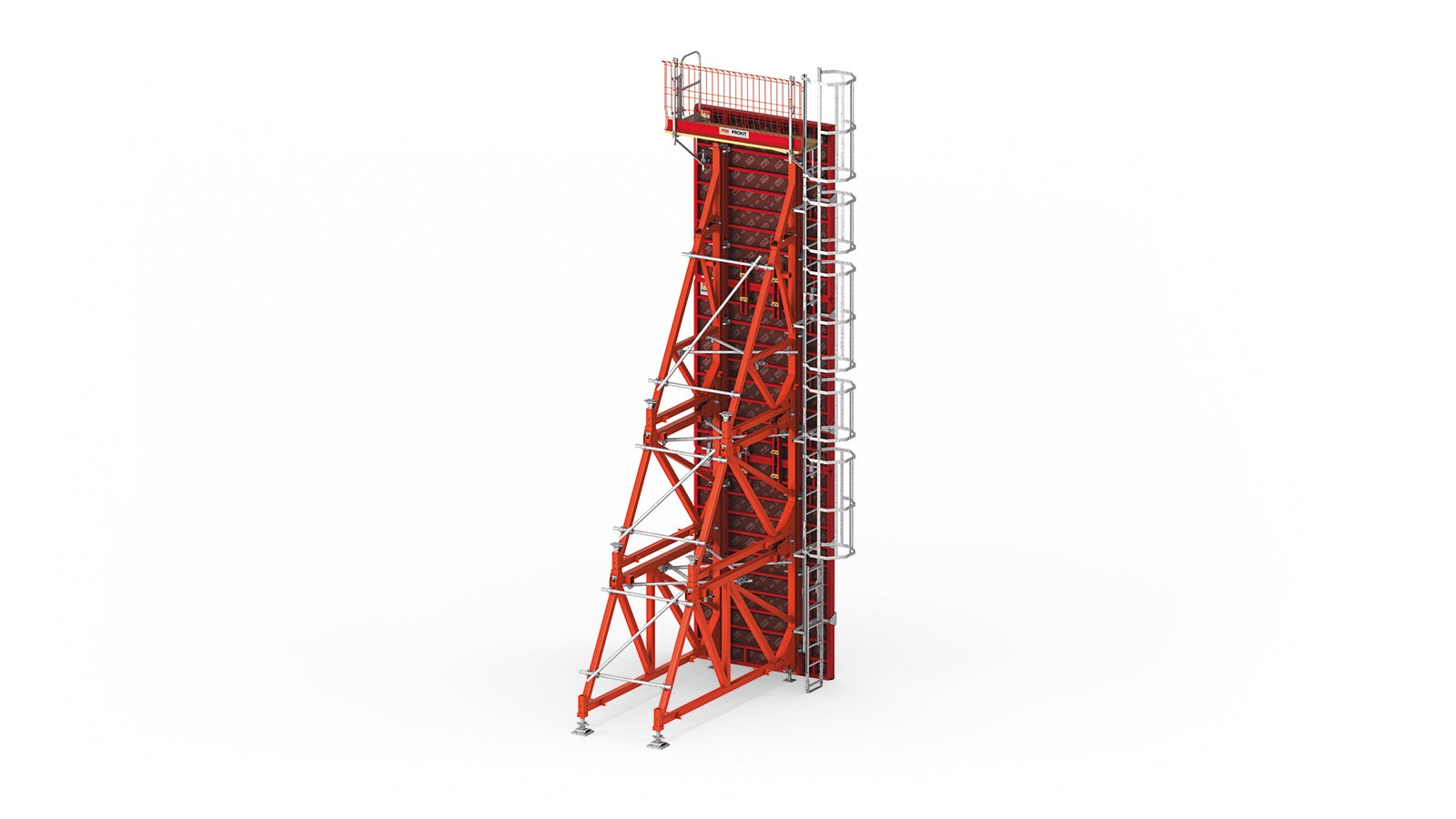

![SB Brace Frame SB Stützbock: Zuverlässiges Betonieren von einhäuptigen Wänden bis 8,75 m Höhe.](https://cdn.peri.cloud/.imaging/mWide/dam/a3f7646d-1691-44a4-8632-52f3faaf1918/38316/sb-brace-frame.jpg)
SB Brace Frame in action
-
Fast and safe handling
Rough adjustment and fine adjustment for realizing the appropriate length take place safely within seconds from the installation area
-
Used also with prefabricated concrete elements
Push-Pull Prop Adapter and Quick Connector mounted from a safe position
-
Durable
Galvanized tubes and threads ensure permanent protection against corrosion and a long service life
Product Data Sheet
System type
Support Frame
Dimensions
Concreting height: 3.00 m to 8.75 m
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
